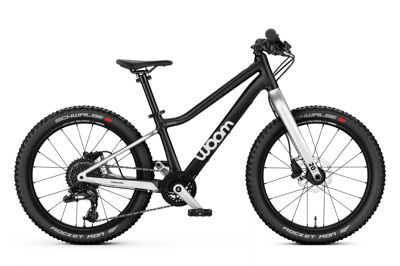

OFF 4

FRAME

• Frame Material: lightweight, high-quality 6061 T6 aluminium with butted and hydroformed tubes
• Wheel Size: 20″
• Handling: Responsive handling: an easy-access low top tube, low centre of gravity and long wheelbase provide good balance and make for a fun, safe riding experience
• Chainstay Protector: Hard-wearing plastic chainstay protector

FORK

• Fork Material: Lightweight woom carbon fork - Multidirectional carbon fibres for high torsional stiffness
• Steerer Tube: 1 1/8″ – 1″ baby taper steerer tube
• Axle: 100 x 15 mm through-axle
• Brake Mount: Post mount standard disc brake mounts

HEADSET

• Type: Fully integrated 1 1/8″ – 1″ headset
• Bearings: Sealed industrial-grade bearings

STEM

• Material & Construction: Forged aluminium, CNC-machined
• Clamping: Handlebars attached via two clamps
• Design: +/-15° flip-flop design to adjust handlebar height
• Length: 50 mm

HANDLEBARS

• Type: Wide, lightweight aluminium bars with tapered ends
• Width: 570 mm
• Rise: 20 mm

GRIPS

• Fit: Child-friendly thanks to small diameter
• Comfort: Ultra comfortable with reinforced contact surface for palms
• Material: 100% silicone for maximum grip
• Design: Lock-on design to eliminate twisting

DRIVETRAIN

• Cranks: Lightweight forged aluminium 110 mm cranks with narrow Q-factor
• Chainring: Narrow-wide chainring with 28 teeth
• Cassette: 11–32T cassette
• Pedals: Platform pedals made from fibre-reinforced nylon with metal pins for added grip
• Axle & Bearings: Cr-Mo axle and sealed industrial-grade ball bearings

BRAKES

• Brakes: Hydraulic disc brakes from Promax
• Rotors: Rotor diameter front/back: 140/140 mm
• Levers: Ergonomic brake levers designed for children's hands

GEARS

• Speeds: 9-speed gearing
• Shifter: SRAM X5 trigger shifter
• Rear Derailleur: SRAM X5 rear derailleur

WHEELS

• Rims: Lightweight, tubeless-ready aluminium rims from Alexrims, Size: 20″
• Hubs: Aluminium hubs with sealed industrial-grade bearings
• Axles: Through-axles for maximum torsional strength (100 x 15 mm front/135 x 12 mm rear)
• Spokes & Nipples: 20 spokes, double-crossed spoking, Aluminium nipples

TYRES

• Tyres: 20 x 2.25" Schwalbe Rocket Ron
• Compound & Tech: ADDIX SPEED rubber compound and Tubeless Easy technology
• Tubeless: Tubeless-ready
• Valves: Presta valves

SADDLE

• Type: MTB-specific saddle, Trail-ready design
• Ergonomics: Ergonomic and age-appropriate design to fit the rider's pelvis
• Protection: Abrasion-resistant side panels for when leaned against walls

SEATPOST

• Dimensions: 27.2 x 250 mm
• Material: Anodised aluminium seatpost with minimum insertion mark

SEATPOST CLAMP

• Type: Quick-release aluminium seatpost clamp
• Lever: Extra-long quick-release lever, easy to operate requiring only minimal strength
• Design: No risk of turning and/or twisting

ENCLOSED TOOLS

• Tools: 4 mm hex key for stem, 8 mm hex key for front wheel and pedals

WEIGHT

• Weight: 8.1 kg (without pedals)/17.85 lbs

COLORS

• Colors: Black, Terra coppa

WEIGHT LIMIT

• Weight Limit: 50 kg (maximum combined weight of bicycle, rider and cargo)/110.23 lbs

SHIPPING DIMENSIONS

• Dimensions: 112 x 64 x 23 cm/45"x 26"x9"
