Stinner Refugio Blue
$4,995.00
Used
Save this product for later

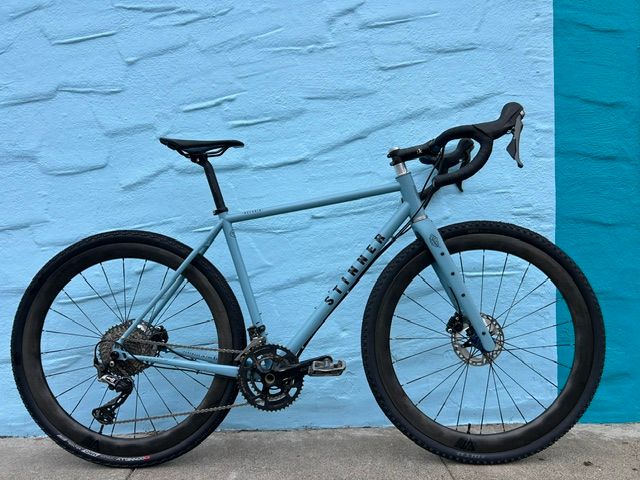

Stinner Refugio Blue
Product Details
Brand: Stinner
Born for the rough stuff.
Drawing inspiration from the rugged, winding terrain of Refugio Road, the Refugio Select embodies the spirit of adventure and challenge. Designed for versatility and endurance, this gravel bike thrives on all surfaces, from steep climbs to rough descents. The Refugio promises a responsive and smooth ride, built to handle even the toughest routes with ease. At Stinner, we don't just build bikes—we craft experiences that last a lifetime.
FRAME //
Material // Columbus Zona/Life Steel Tube Set
Finish // Durable Powder Coat
Dropouts // Stinner UDH 160mm Flat Mount Steel Dropouts
Drivetrain Compatibility // Mechanical 2x or 1x (full length housing) / SRAM AXS 2x Wide or 1x Wide - Transmission/Full Mount compatible (installed is Shimano GRX)
MAX Tire Clearance // 700 x 50mm
MAX Tire Clearance w/ Fenders // 700 x 45mm
MAX Chainring Clearance // 2x: 43/30t Wide (47.5mm chainline) // 1x: 42t (47.5mm chainline)
Dropout Spacing // 142 x 12mm
Rear Axle // 166mm - M12 x 1.0 - 15mm threaded portion
Brake Mount // Flat Mount 160mm
MAX Rotor Size // 160mm
Brake Routing // External w/bolt-on and zip-tie guides
Seatpost Diameter // 27.2mm
Seatpost Clamp Diameter // 30mm
Front Derailleur Clamp Diameter // 28.6mm
Bottom Bracket // BSA 68mm wide shell
Headtube Diameter // 44mm Internal Top and Bottom
Headset Specs // Upper: ZS44/28.6 - Lower: EC44/40
Mounts // Fender Mounts - 3 bottle cage locations
FORK //
Material // Full Carbon
MAX Tire Clearance // 700 x 50mm
MAX Tire Clearance w/ Fenders // 700 x 45mm
Dropout Spacing // 100 x 12mm
Front Axle // 120mm - M12 x 1.5
Brake Mount // Flat Mount 140mm
MAX Rotor Size // 160mm
Brake Routing // External (Internal through non-drive leg)
Steerer // 1.5" Tapered
Steerer Length // 350mm
Crown Race // 40mm
Axle to Crown // 398mm
Rake // 50mm
Mounts // Fender Mounts - Triple mounts on each fork leg (maximum load of 6lbs per fork leg) - Front light mount with internal dynamo wire routing
